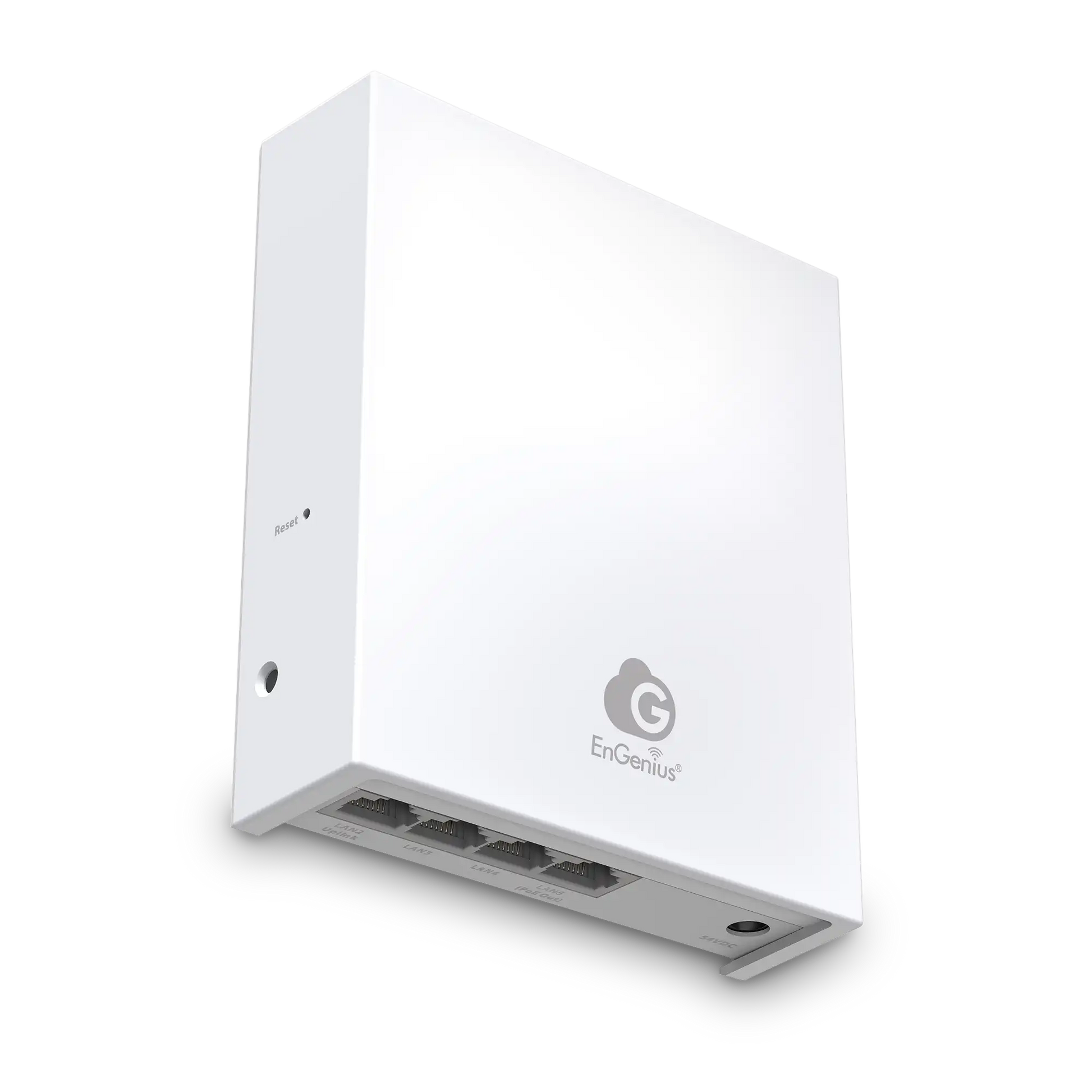

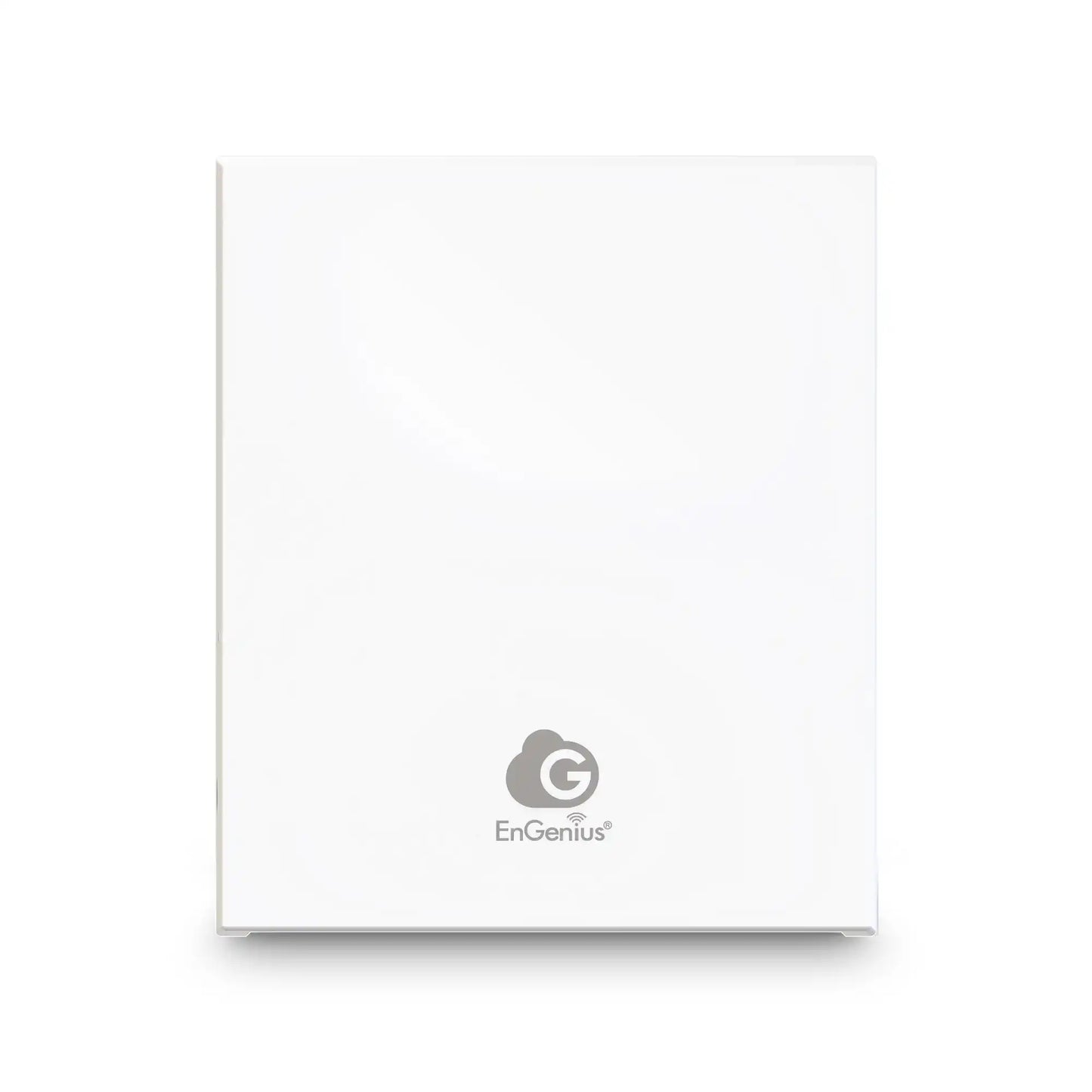

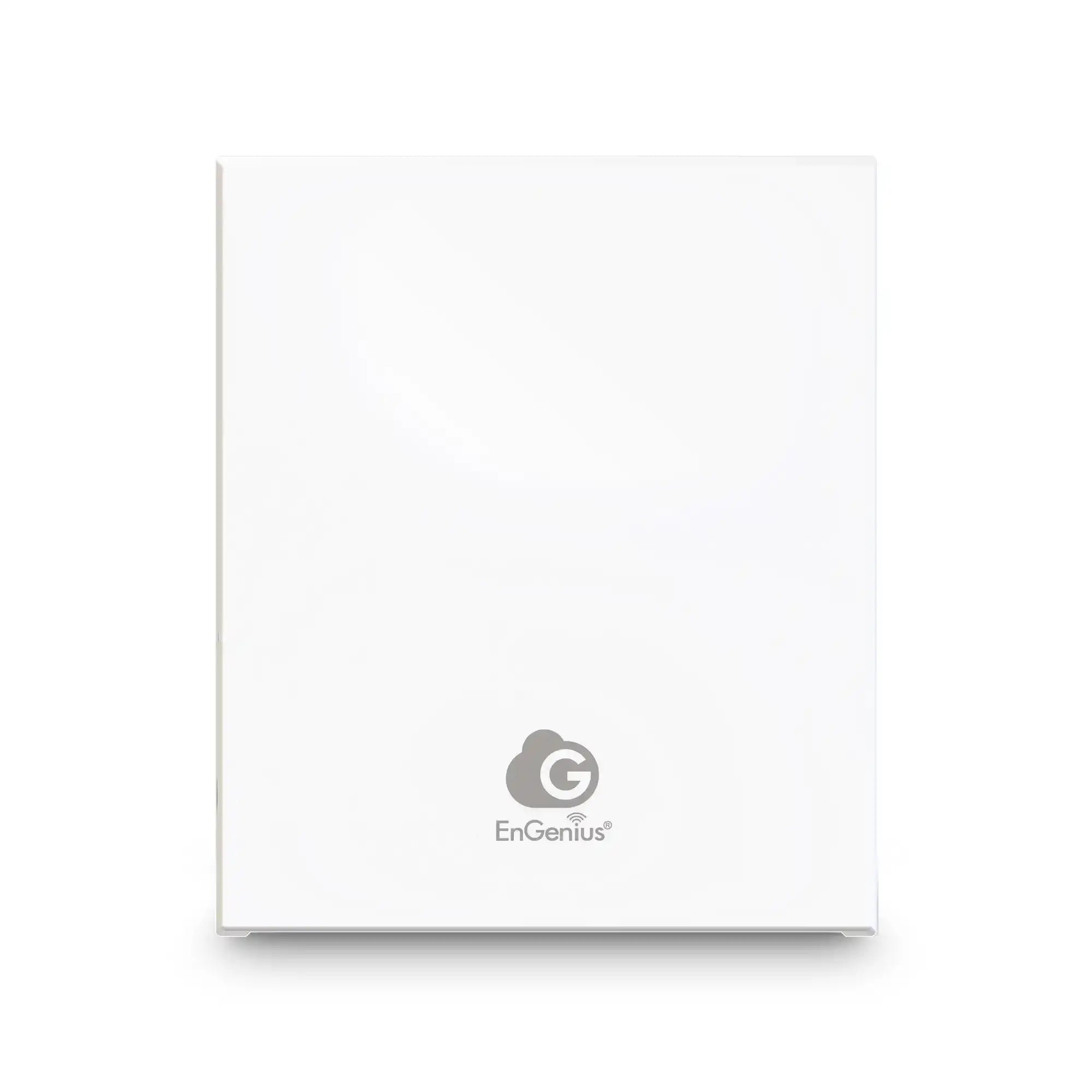

ECW515: Wi-Fi 7 Cloud-Managed Wall Plate Access Point

• Wi-Fi 7 delivers blazing gigabit performance up to 3.6 Gbps

• Supports up to 100 guest devices per AP

• Covers 1,000 sq. ft. with reliable, high-performance Wi-Fi

• WPA3 with EnGenius MyPSK delivers stronger encryption and unique per-user credentials, enhancing Wi-Fi security and access control

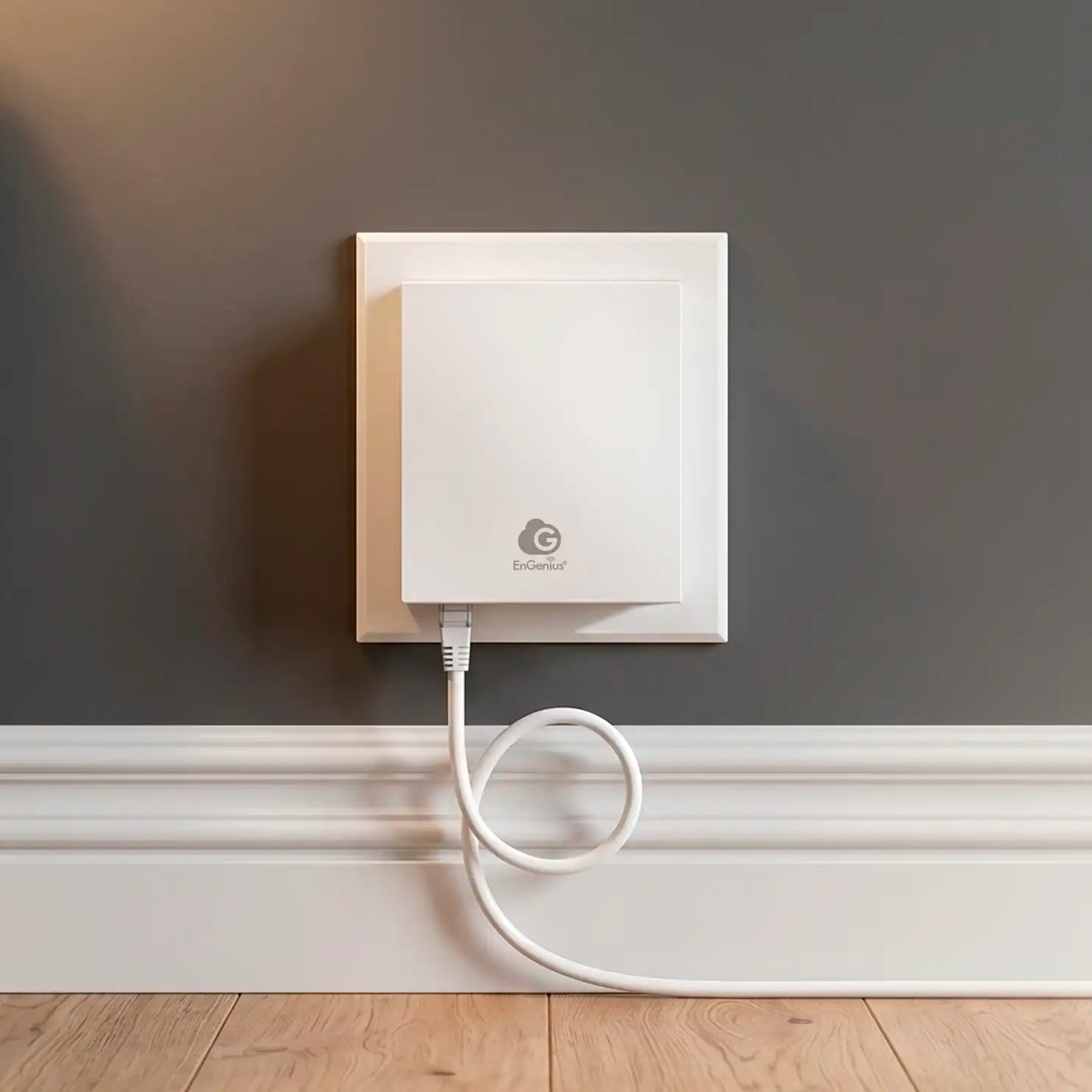

• Sleek, low-profile design for in-room Wi-Fi 7 & wired connectivity

• On-board 4-port switch offers port-based 802.1Q VLAN support

• Faster throughput and installation flexibility with up-to 100 meters away with the 2.5Gbe PoE+ port

• Connect & power VoIP phones or other PoE devices with PSE Support

• SmartCast to personalize in-room media with mobile device streaming to TVs

• Easy cloud management with simple registration and mobile app access

• Remote connectivity diagnostics, Wi-Fi quality testing, and device configurations

• Compatible with iPhone 17 Pro, MacBook Pro, iPad Pro, Galaxy S25/S25+, and other Wi-Fi 7 devices

• Best for hotels, student housing, assisted living facilities, senior living communities, multi-tenant residences, and modern classrooms

Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
(Backward compatible with 802.11b/g/n/ac/ax)

Processor
Qualcomm® Networking Pro 1220

Antenna
2 x 2.4 GHz: 5 dBi
2 x 5 GHz: 5 dBi

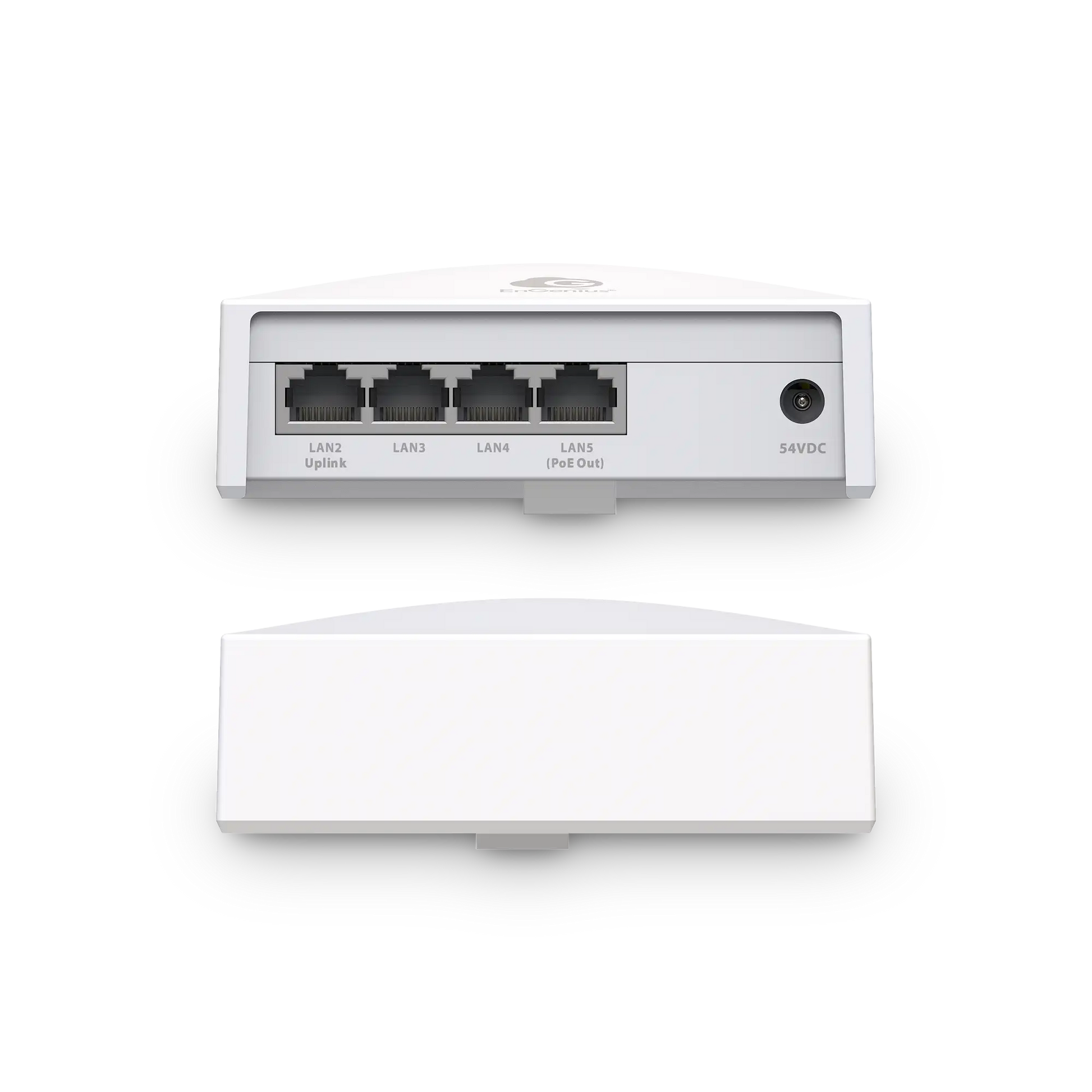

Physical Interface

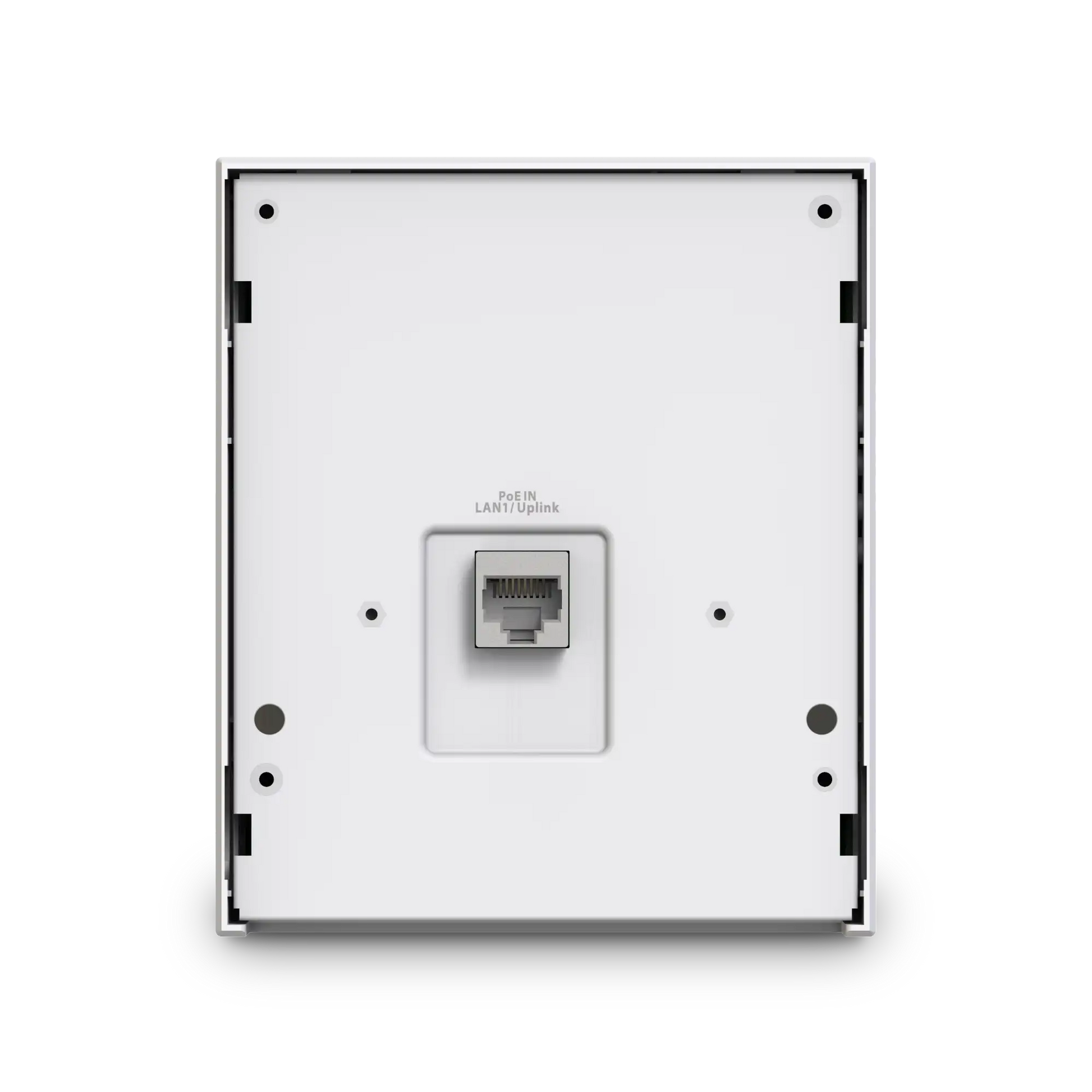

1 x 10/100/1000/2500 BASE-T, PoE in, RJ-45 Ethernet Port

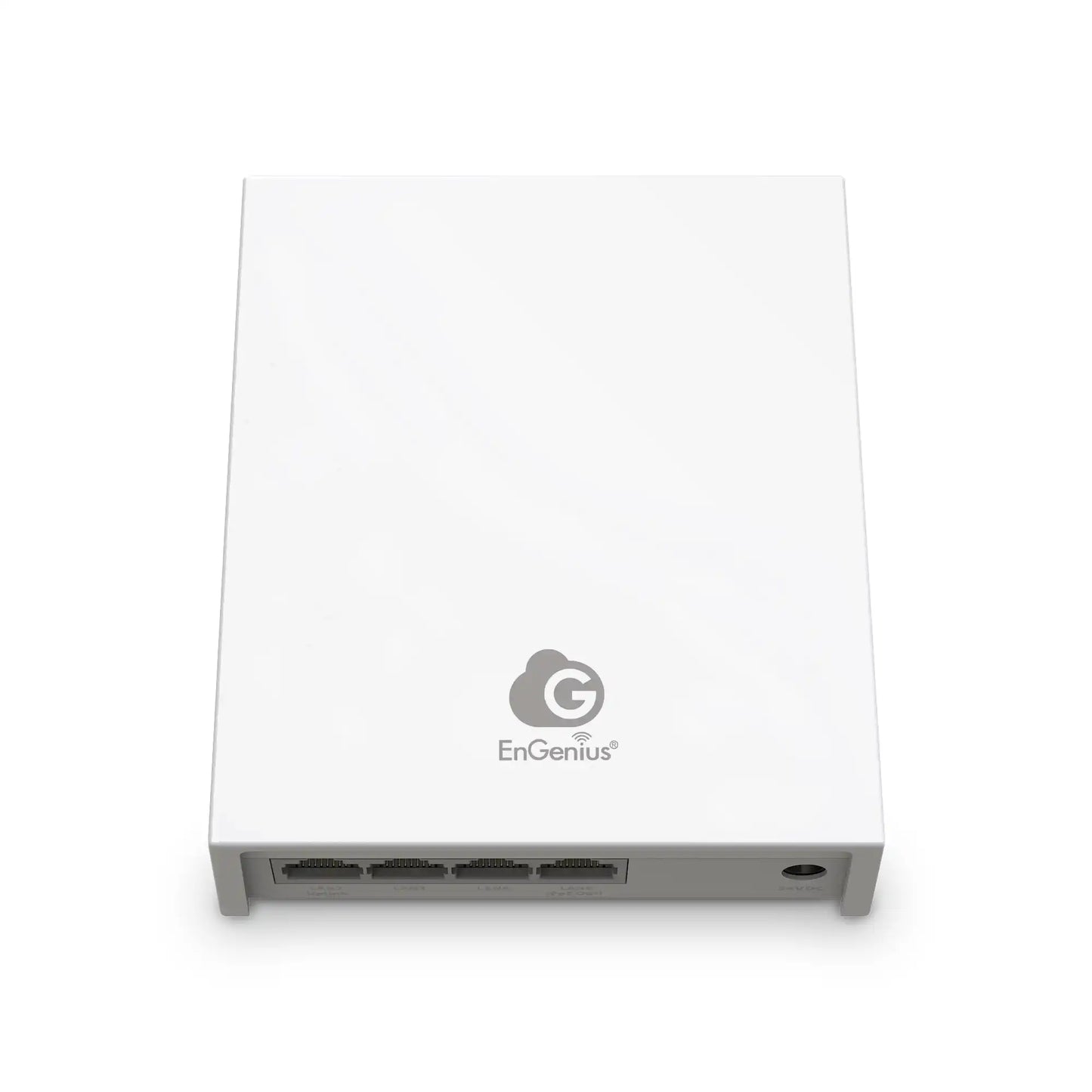

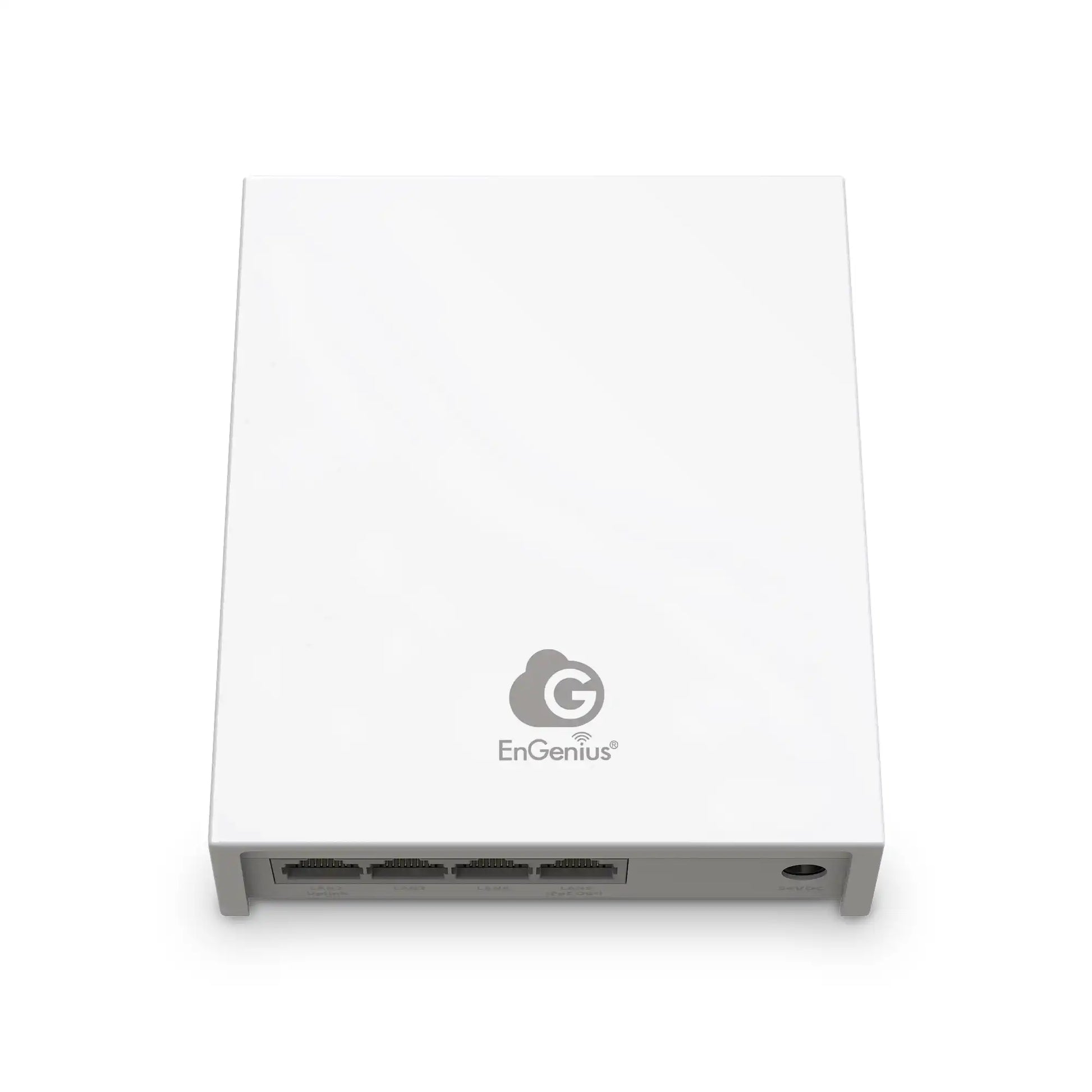

4 x 10/100/1000 BASE-T, RJ-45 Ethernet Port
1 x DC Jack

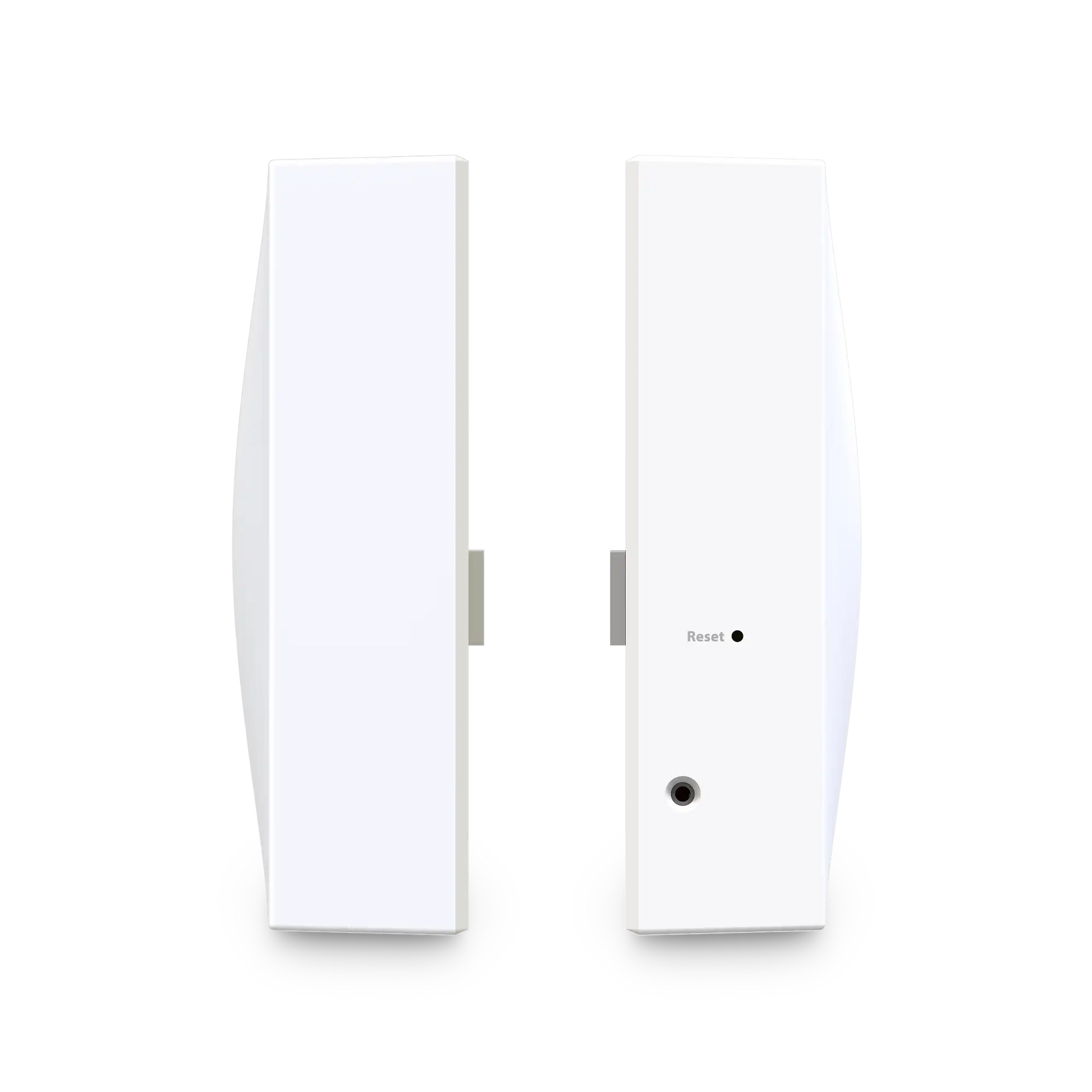

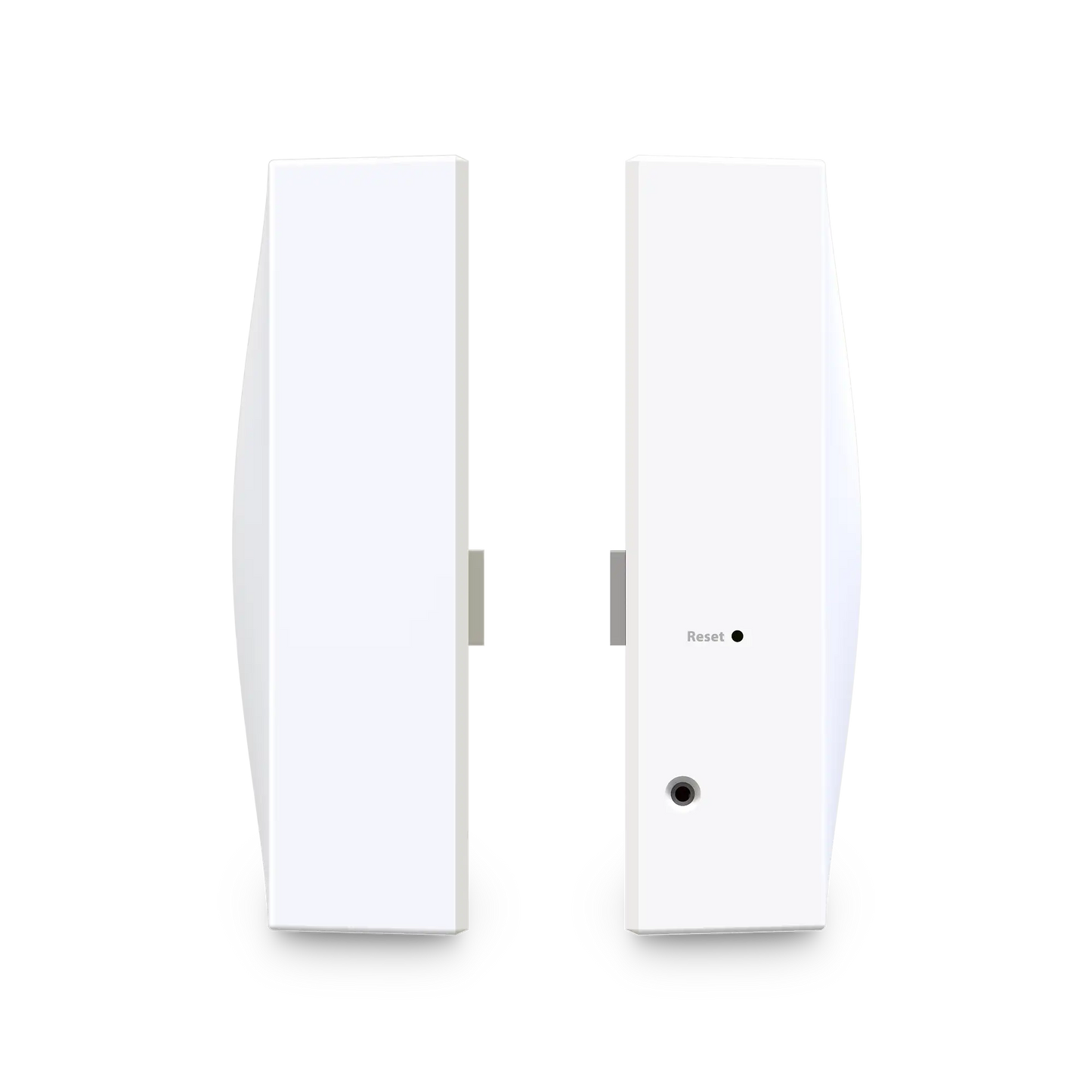

1 x Reset Button

LED Indicators
1 x Multi-Color LED
- Power up
- Cloud connecting
- Disconnected

Power Source
Power-over-Ethernet: 802.3at Input
54VDC /1A Power Adapter (Not Included)
EPA5006GAT PoE+ Injector (Not Included)

Maximum Power Consumption
DC in 26W, PoE in 18W

Operating Frequency
Dual Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes
AP, Mesh, Mesh AP

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power
Up to 21 dBm on 2.4 GHz
Up to 22 dBm on 5 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 2,900 Mbps wireless data rate with EHT160 bandwidth to a 2x2 wireless device under the 5GHz radio.

MU-MIMO
Two (2) spatial stream Multi-User (MU)-MIMO for up to 700 Mbps wireless data rate with EHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio simultaneously.
Two (2) spatial stream Multi-User (MU)-MIMO for up to 2,900 Mbps wireless data rate with EHT160 bandwidth to a 2x2 wireless device under the 5GHz radio simultaneously.

Supported Data Rates (Mbps)
802.11be:
- 5 GHz: Max 2,900 (MCS0 to MSC11, NSS = 1 to 2)
- 2.4 GHz: Max 700 (MCS0 to MCS11, NSS = 1 to 2)
802.11ax:
- 5 GHz: 18 to 1,200 (MCS0 to MSC11, NSS = 1 to 2)
- 2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2)
802.11n: 6.5 to 300 (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11

Supported Radio Technologies
802.11be/ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization
802.11be supports extreme high efficiency (EHT) —EHT 20/40/80/160 MHz
802.11ax supports high efficiency (HE) —HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Max Concurrent Users
Up to 100

Multiple BSSID
8 SSIDs for 2.4GHz & 5GHz

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
IEEE 802.11e compliant
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation

Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

Surge Protection
L-L: 2KV, L-G: 4KV

ESD
Contact 4KV; Air: 8KV

Network Ethernet Ports
1 x 10/100/1000/2500Mb, 2.5Gb Data & PoE Input; RJ-45
4 x 10/100/1000Mb, 1Gb Data & Power Output; RJ-45

Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 158°F (-20°C to 70°C)

ECW515 Device
Weight: .72 lbs. (.328 Kg)
Length: 5.1” (130 mm)
Width: 4.3” (110 mm)
Height: 1.6” (42 mm)

ECW515 Packaging
Weight: 1.02 lbs. (.465 Kg)
Length: 6.92” (176mm)
Width: 6.57” (167 mm)
Height: 2.59” (66 mm)

Package Contents
1 x ECW515 Cloud Managed Indoor Access Point
1 x Ceiling and Wall Mount Screw Kits
1 x Quick Installation Guide
1 x Junction-plates (tall/short)

Certifications
FCC
CE
IC

Warranty
5 Year
