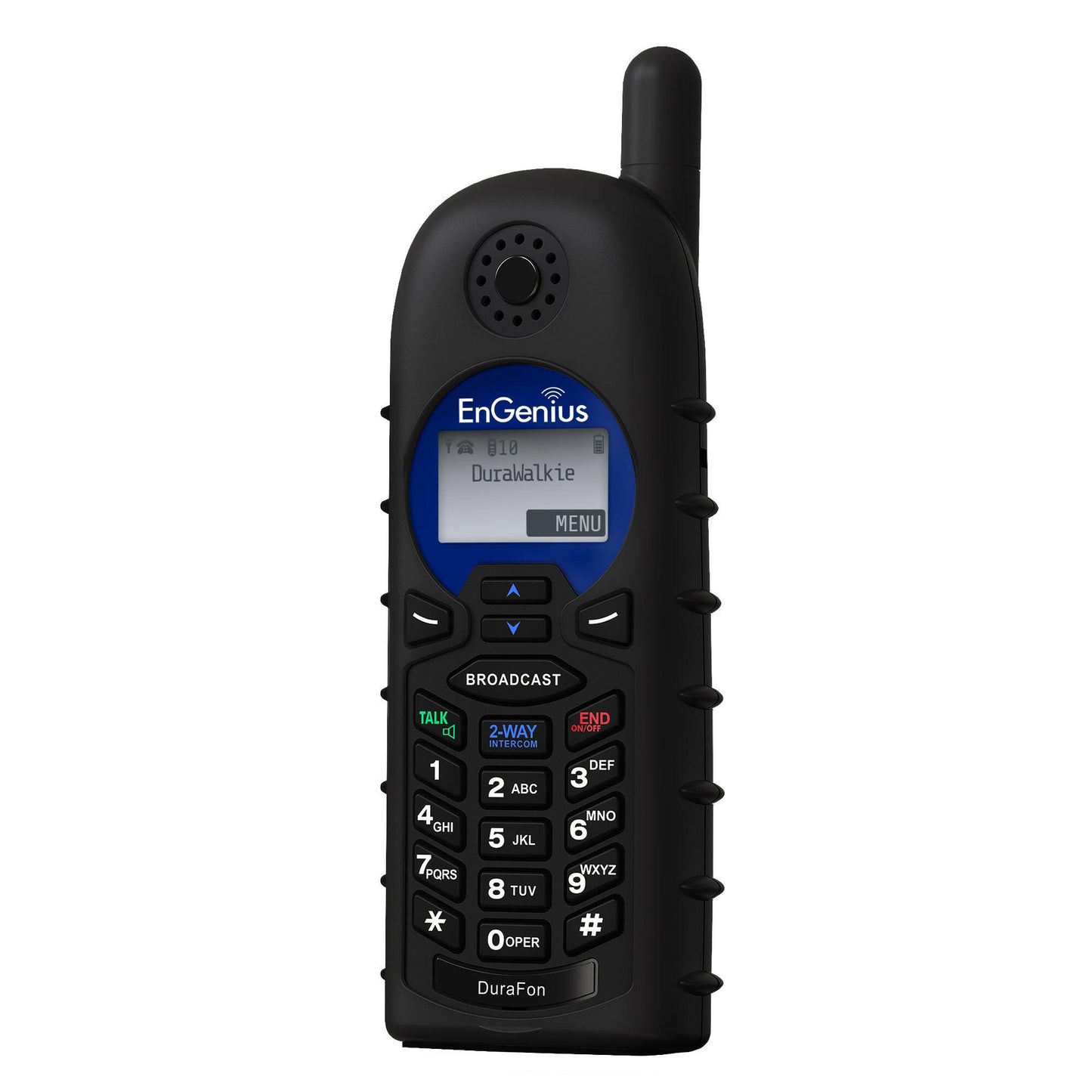

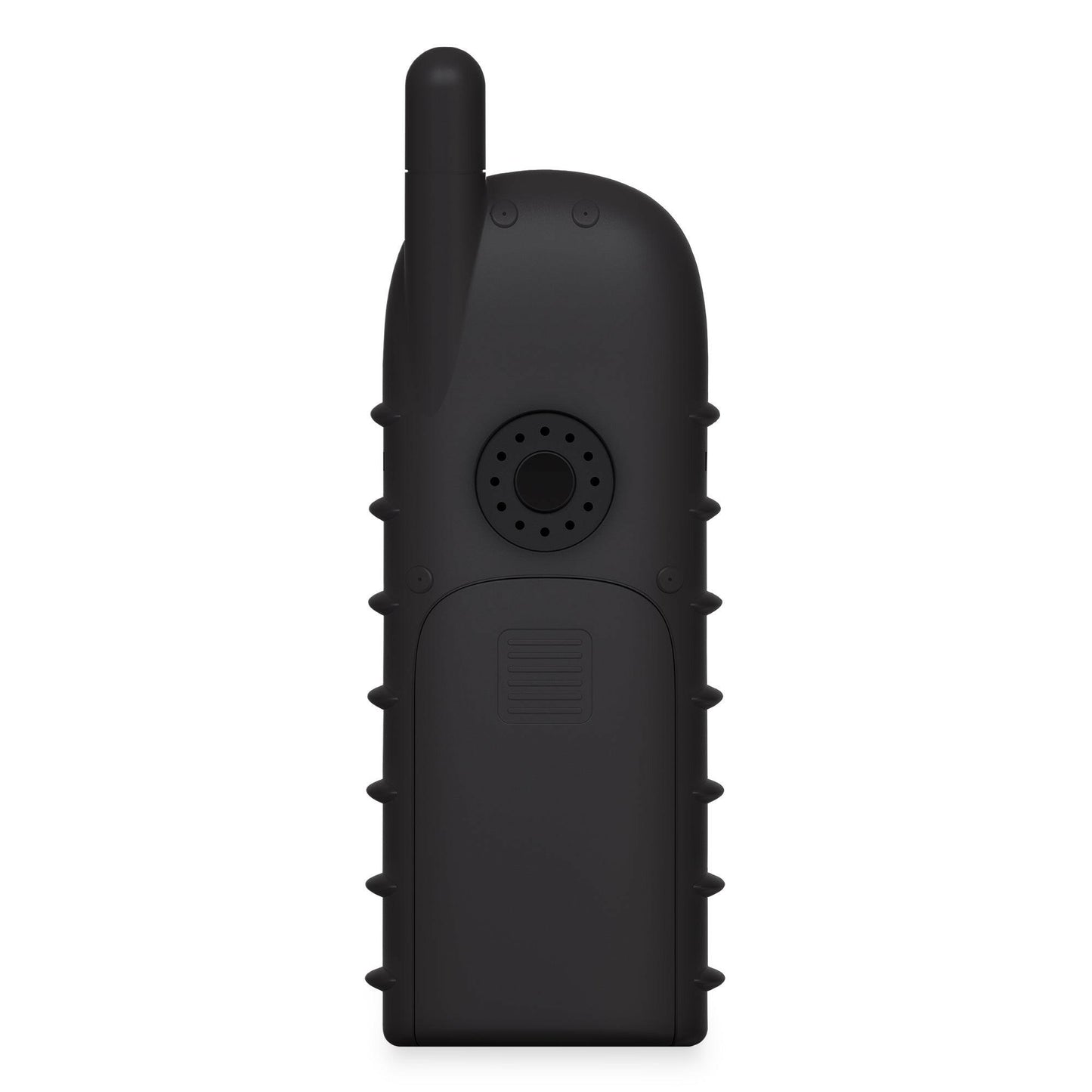

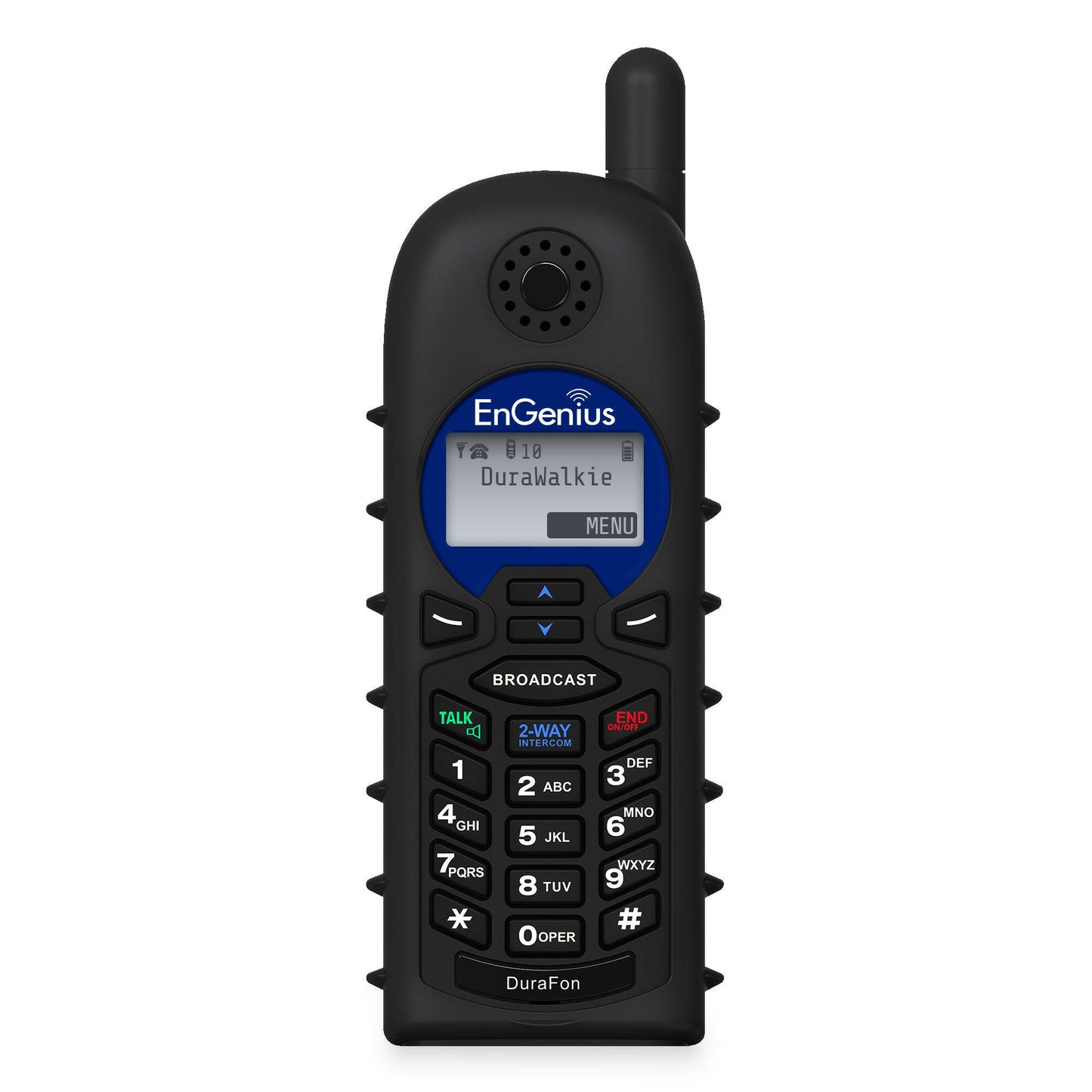

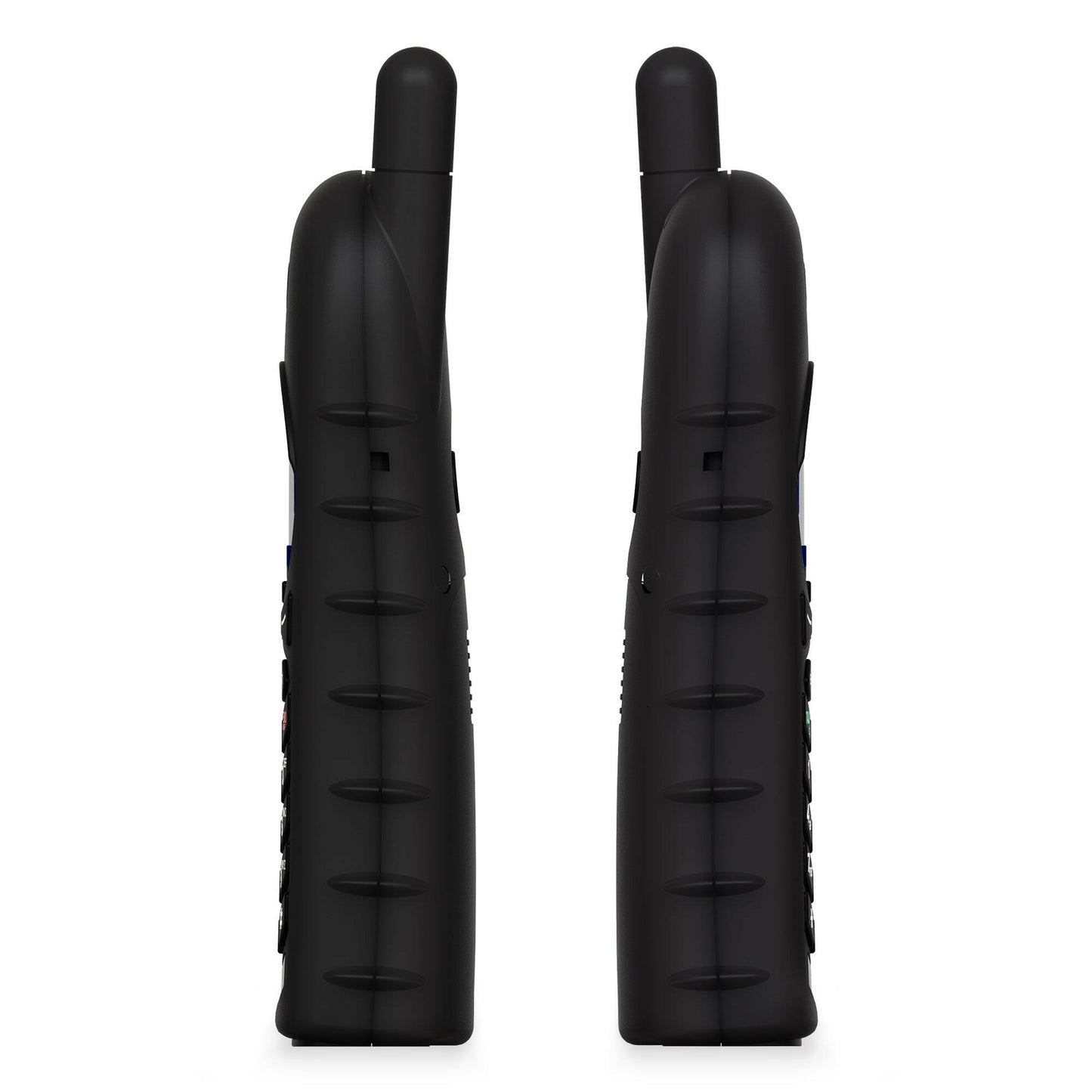

DuraWalkie
Two-Way Radio Handset for DuraFon PRO Systems
Designed with 2-way radio walkie-talkie function, the DuraWalkie compliments the DuraFon PRO system. The DuraWalkie allows specified users to stay in touch with the home base, without requiring an outgoing telephone call—a flexible business premises mobility communications solution.
Specifications
- Designed to Work With DuraFon PRO Systems
- Long-Range Coverage & Durable Ruggedized Design
- DuraWalkie can receive transferred call from DuraFon PRO-HC
- Six (6) Hours Talk Time or 50 Hours Stand-By; Hearing Aid Compatible
1 - Handset w/ battery cover
1 - Battery pack
1 - Low profile handset antenna
1 - High performance handset antenna
1 - Handset charging cradle
1 - Handset charging cradle AC adapter
1 - Handset belt clip
Buttons
End/Power
Left & Right Soft Keys
Up & Down Scrolling Keys
Broadcast
Key Lock
Intercom/2-Way
0 – 9, #

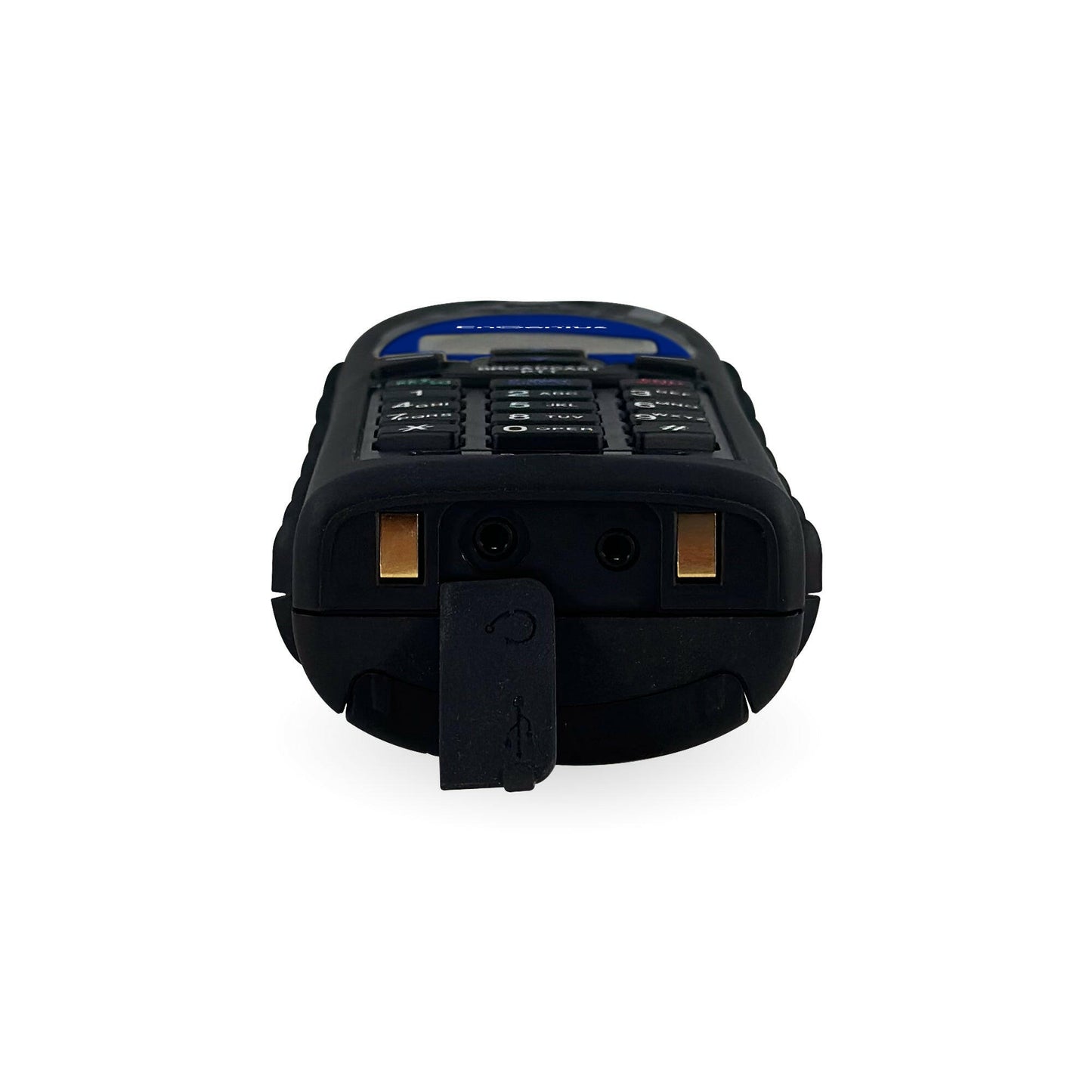

Jacks (on charger)
Travel Charger
Headset
LED Indicators
N/A
Frequency
902-928 MHz
RF Power
Peak: 708 mW; Average: 76 mW
Channel Spacing
200 kHz
Number of Channels
128
Modulation
MSK
Multiple Access
Frequency Hopping TDMA
Frequency Hopping Rate
100 per second
TDMA Frame Length
10 ms
Number of Talk Paths
4 per base (32 max)
Receiver Sensitivity
< -109 dBm (@ BER 10-2)
Antenna Connector
Non-Standard
Antenna Gain
2 dBi (Long); 0.5 dBi (Short)
TX Power Control Range
708 mW
Telephone Interface
N/A
VoIP Interface
N/A
Default IP Address
N/A
Default User Name & Password
N/A
SIP Protocol
N/A
Speech Coding
8 kbps G.729A
Channel Coding
8 kbps Convolutional + CRC
Transmission Data Rate
170.678 kbps
User Data Rate
128 kbps duplex
Duplex
Time Division Duplex (TDD)
Voice Quality
TIA/EIA-470B
Number of System IDs
65,536
Ring Signal
N/A
Auto-Attendant Coding
N/A
Flash Time
N/A
Power Source
3.7v, 1700mAh Li-ion Battery
Charge Time
4 Hours (from empty)
Charge Current
500 mA
Battery Talk & Standby Time
8 Hours/50 Hours
