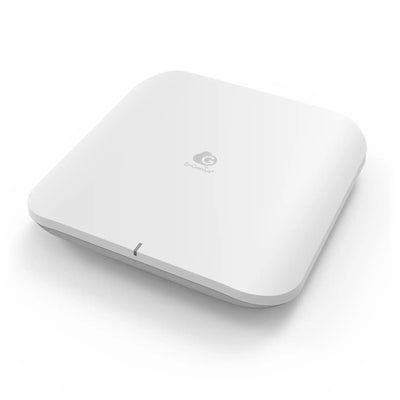

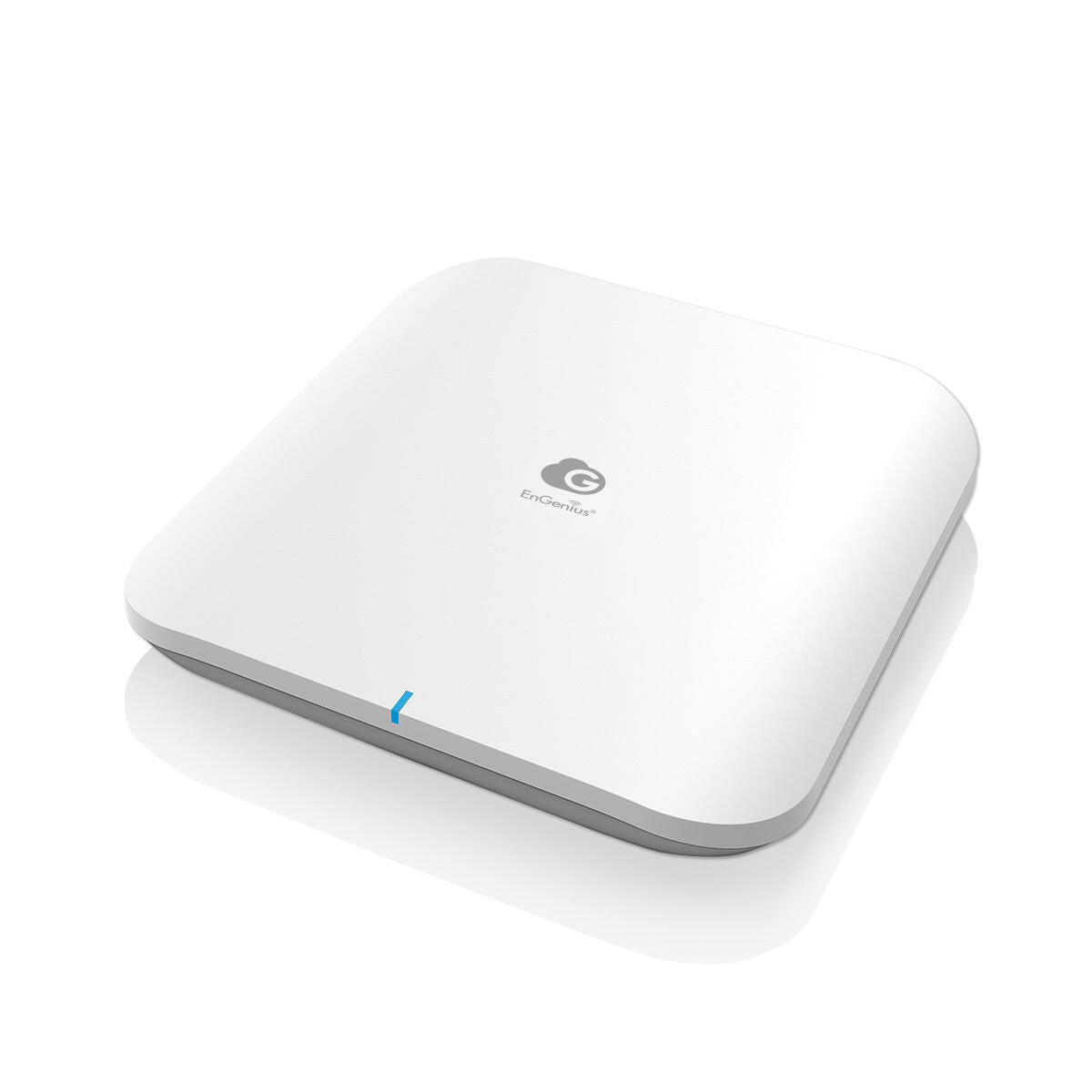

ECW536: Cloud Managed 4x4x4 Indoor WiFi 7 Access Point

• Wi-Fi 7 Tri-band, 2.4GHz, 5 GHz, and 6 GHz supports 18.7 Gbps aggregate speeds

• Ultra-wide 320 MHz channels in 6 GHz to deliver extreme throughput gains

• 4x4x4 integrated omni-directional antenna design for greater coverage area

• 4 MU-MIMO spatial streams to ensure premium performance in high density environments

• 4096-QAM advanced modulation packs more data for throughput and capacity

• Multi-Link Operation (MLO) increases throughput and reliability utilizing multiple bands

• Multi-RU puncturing avoids interference, increases throughput, and reduces latency

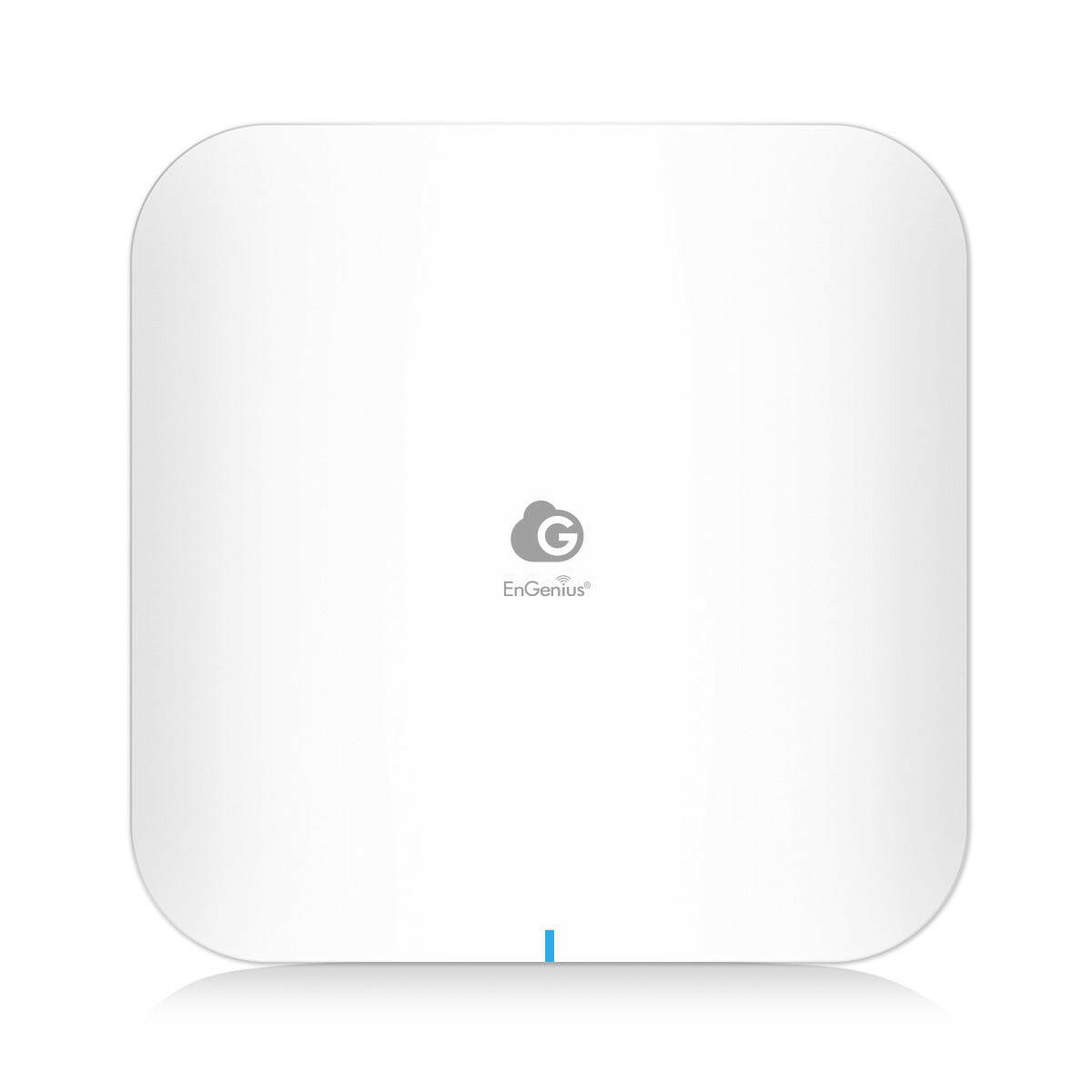

• Sleek ceiling-mount with a modern multi-color LED for low-profile design

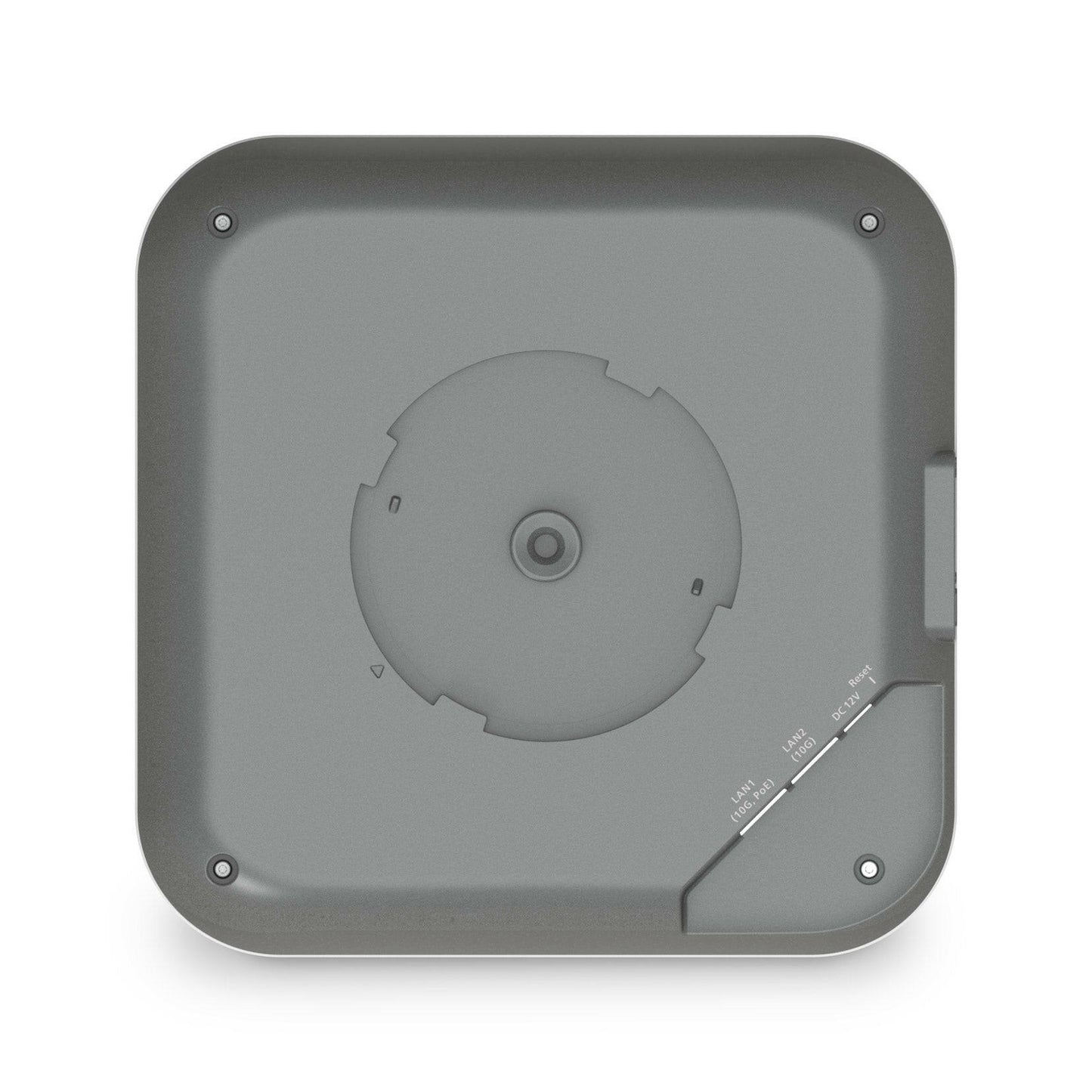

• Simple click-n-twist mounting and Kingston lock for easy and secure installation

• 10 GbE PoE++ port to maximize multi-gigabit connection speeds and AP placement

• Secondary 10 GbE port to conveniently connect to another high-performance device

• Cutting-edge cloud management for centralized management and mass scalability

• Advanced enterprise security with radius and isolated guest access for more secure networks

• Access point diagnostic tools for real-time remote monitoring and troubleshooting

• Compatible with iPhone 16 Pro, MacBook Pro, iPad Pro, Galaxy S23, and Galaxy S23+

Standards
IEEE 802.11be on 2.4 GHz
IEEE 802.11be on 5 GHz
IEEE 802.11be on 6 GHz
(Backward compatible with 802.11b/g/n/ac/ax)

Processor
Qualcomm® Networking Pro 1220

Antenna
4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
4 x 6 GHz: 5 dBi

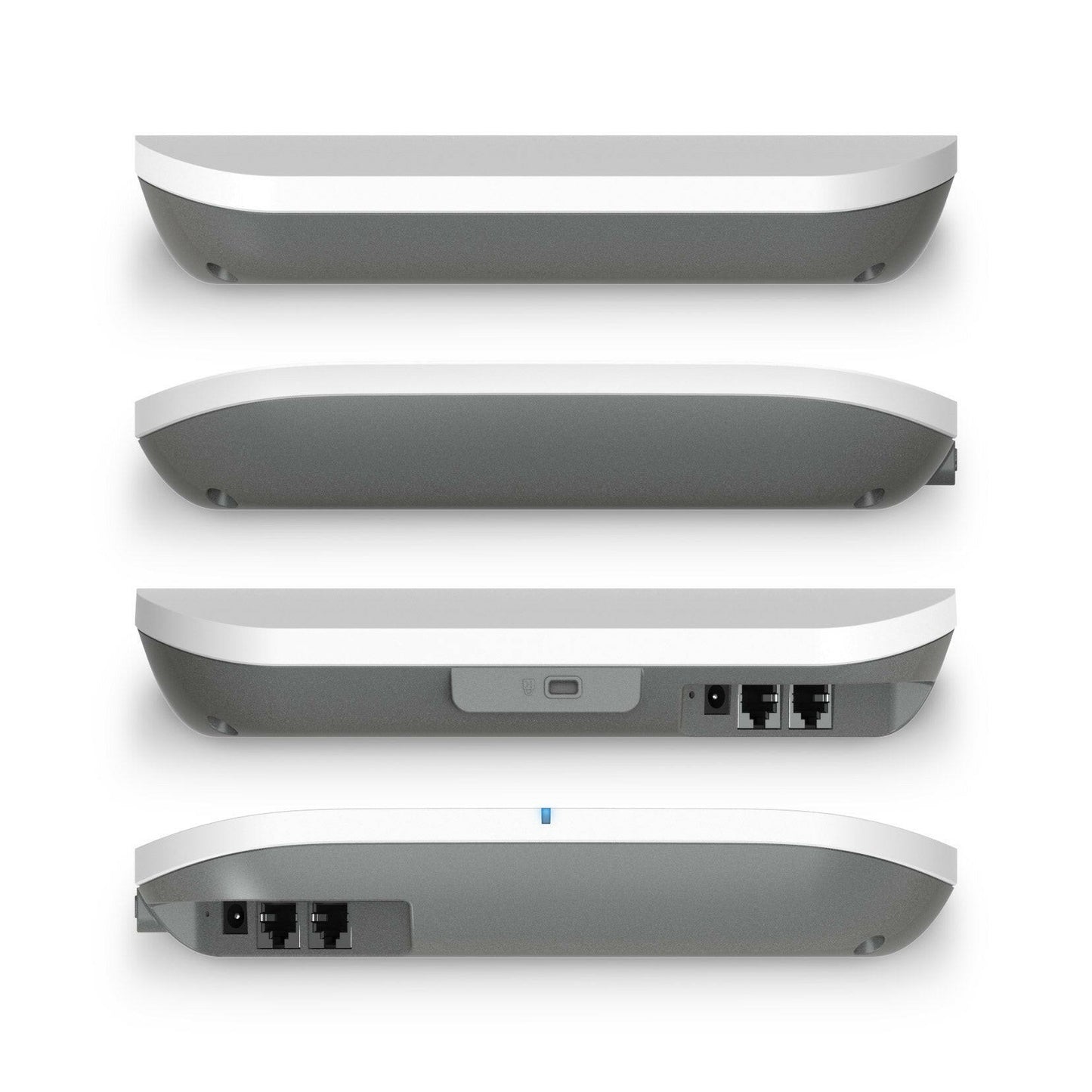

Physical Interface
2 x 10/100/1000/2500/5000/10000 BASE-T, RJ-45 Ethernet Port
1 x DC Jack
1 x Reset Button

LED Indicators
1 x Multi-color LED

Power Source
Power-over-Ethernet: 802.3bt Input
12VDC/3A Power Adapter (Not Included)

Maximum Power Consumption
35W

Operating Frequency
Tri-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz

Operation Modes
AP, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz

Transmit Power
Up to 25 dBm on 2.4 GHz
Up to 24 dBm on 5 GHz
Up to 24 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance

Radio Chains/Spatial Stream
4x4x4:4

SU-MIMO
Four (4) spatial stream Single User (SU) MIMO for up to 1,376 Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio.
Four (4) spatial stream Single User (SU) MIMO for up to 11,529 Mbps wireless data rate with HE320 bandwidth to a 4x4 wireless device under the 6GHz radio.

MU-MIMO
Four (4) spatial stream Multi-User (MU)-MIMO for up to 1,376Mbps wireless data rate with VHT40 bandwidth to a 4x4 wireless device under the 2.4GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 5,764 Mbps wireless data rate with HE160 bandwidth to a 4x4 wireless device under the 5GHz radio simultaneously.
Four (4) spatial stream Multi-User (MU)-MIMO for up to 11,529 Mbps wireless data rate with HE320 bandwidth to a 4x4 wireless device under the 6GHz radio simultaneously.

Supported Data Rates (Mbps)
802.11be:
6 GHZ: Max 11,600 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: Max 5,800 (MCS0 to MCS11, NSS = 1 to 4)
2.4 GHz: Max 1,440 (MCS0 to MCS11, NSS = 1 to 4)
802.11ax:
6 GHZ: 18 to 4,800 (MCS0 to MCS13, NSS = 1 to 4)
5 GHz: 18 to 2,400 (MCS0 to MCS11, NSS = 1 to 4)
2.4 GHz: 9 to 1,148 (MCS0 to MCS11, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11

Multiple BSSID
8 SSIDs for 2.4GHz, 5GHz, & 6 GHz radios

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
IEEE 802.11e compliant
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB

Wireless Security
WPA3 Enterprise
WPA3-PSK (SAE)
WPA3/WPA2-PSK Mixed
WPA2 Enterprise
WPA2 AES-PSK
Hide SSID in Beacons
MAC Address Filtering, up to 256 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
L2 Isolation

Temperature Range
Operating: 32ºF~104ºF (0ºC~40ºC)
Storage: -40ºF~176 ºF (-40ºC~80ºC)

Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less

ECW536 Device
Weight: TBD
Length: 9.06" (230 mm)
Width: 9.06" (230 mm)
Height: 1.46" (37 mm)

Package Contents
1 x ECW536 Cloud Managed Indoor Access Point
1 x Mount Base
1 x Ceiling and Wall Mount Screw Kits
1 x Quick Installation Guide

Certifications
FCC
CE
IC

Warranty
5 Year
